Tranylcypromine Sulfate
(tran'' il sip' roe meen sul' fate).

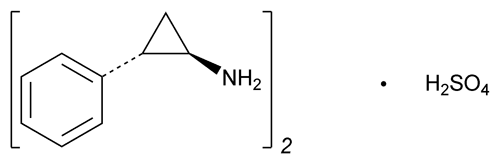

Click to View Image

(C9H11N)2·H2SO4 364.46
Cyclopropanamine, 2-phenyl-, trans-(±)-, sulfate (2:1);
(±)-trans-2-Phenylcyclopropylamine sulfate (2:1)     [13492-01-8].
DEFINITION
Tranylcypromine Sulfate contains NLT 98.0% and NMT 102.0% of (C9H11N)2·H2SO4, calculated on the dried basis.
IDENTIFICATION
•  B. The retention time of the major peak of the Sample solution corresponds to that of the Standard solution, as obtained in the Assay.
•  C. Identification Tests—General, Sulfate 191: Meets the requirements
ASSAY
•  Procedure
Buffer:  Dissolve 3.4 g of monobasic ammonium phosphate in about 900 mL of water in a 1-L volumetric flask. Adjust with phosphoric acid to a pH of 2.2 ± 0.1, and dilute with water to volume.
Mobile phase:  Methanol and Buffer (3:7)
0.05 N sulfuric acid:  Cautiously add 1.3 mL of sulfuric acid to 100 mL of water, cool to room temperature, and dilute to 1000 mL.
Diluent:  Methanol, water, and 0.05 N sulfuric acid (1:3:1)
Standard stock solution:  Using a sonicator, dissolve USP Tranylcypromine Sulfate RS in 0.05 N sulfuric acid and methanol (about 30% of the final volume of each solvent). Dilute with Diluent to obtain a 400 µg/mL solution.
Standard solution:  40 µg/mL of USP Tranylcypromine Sulfate RS in Diluent, prepared from the Standard stock solution
Sample stock solution:  Using a sonicator, dissolve Tranylcypromine Sulfate in methanol and 0.05 N sulfuric acid (about 30% of the final volume of each solvent). Dilute with Diluent to obtain a 400 µg/mL solution.
Sample solution:  40 µg/mL tranylcypromine sulfate in Diluent, prepared from the Sample stock solution
Chromatographic system
Mode:  LC
Detector:  UV 220 nm
Column:  4.6-mm × 25-cm; 4-µm packing L11
Column temperature:  30
Flow rate:  1 mL/min
Injection size:  20 µL
System suitability
Sample:  Standard solution
Suitability requirements
Tailing factor:  NMT 2.0
Relative standard deviation:  NMT 2.0%
Analysis
Samples:  Standard solution and Sample solution
Calculate the percentage of (C9H11N)2·H2SO4 in the portion taken:
Result = (rU/rS) × (CS/CU) × 100
rU== peak response from the Sample solution
rS== peak response from the Standard solution
CS== concentration of USP Tranylcypromine Sulfate RS in the Standard solution (µg/mL)
CU== concentration of tranylcypromine sulfate in the Sample solution (µg/mL)
Acceptance criteria:  98.0%–102.0% on the dried basis
IMPURITIES
Inorganic Impurities
•  Residue on Ignition 281: NMT 0.1%
•  Heavy Metals, Method II 231: NMT 20 ppm
Organic Impurities
•  Procedure
Buffer, 0.05 N sulfuric acid, and Diluent:  Proceed as directed in the Assay.
Solution A:  Methanol and Buffer (3:17)
Solution B:  Methanol and Buffer (3:7)
Mobile phase:  See the gradient table below.
Time
(min)
Solution A
(%)
Solution B
(%)
0 100 0
20 100 0
25 0 100
37 0 100
39 100 0
45 100 0
Standard stock solution:  14 µg/mL of USP Tranylcypromine Sulfate RS, and 60 µg/mL each of USP Tranylcypromine Related Compound A RS and USP Tranylcypromine Related Compound B RS in Diluent. [Note—Sonicate as needed. ]
Standard solution:  Transfer a portion of the Standard stock solution to a suitable volumetric flask containing methanol and 0.05 N sulfuric acid (30% of the final volume of each solvent). Dilute with Diluent to volume to obtain a solution containing 0.7 µg/mL of USP Tranylcypromine Sulfate RS and 3.0 µg/mL each of USP Tranylcypromine Related Compound A RS and USP Tranylcypromine Related Compound B RS.
Sample solution:  Using a sonicator, dissolve Tranylcypromine Sulfate in methanol and 0.05 N sulfuric acid (about 30% of the final volume of each solvent). Dilute with Diluent to obtain a solution containing 680 µg/mL of tranylcypromine sulfate.
Chromatographic system
Mode:  LC
Detector:  UV 249 nm for tranylcypromine related compound B; 220 nm for all other specified and unspecified impurities
Column:  4.6-mm × 15-cm; 3-µm packing L1
Column temperature:  35
Flow rate:  1.2 mL/min
Injection size:  25 µL
System suitability
Sample:  Standard solution
Suitability requirements
Resolution:  NLT 2.0 between tranylcypromine and tranylcypromine related compound A, determined at 220 nm
Tailing factor:  NMT 2.0 for tranylcypromine, determined at 220 nm
Relative standard deviation:  NMT 6.0% for tranylcypromine and tranylcypromine related compound A, determined at 220 nm; NMT 6.0% for tranylcypromine related compound B, determined at 249 nm.
Analysis
Samples:  Standard solution and Sample solution
[Note—Disregard the signal for tranylcypromine related compound B observed at 220 nm. ]
Identify tranylcypromine related compound A, cis-hydrazide, trans-hydrazide, and any unspecified impurity using the data in Impurity Table 1. Calculate the percentage of each impurity in the portion of sample taken:
Result = (rU/rS) × (CS/CU) × 100/F
rU== peak response of the impurity from the Sample solution
rS== peak response of the Standard solution
CS== concentration of USP Tranylcypromine Sulfate RS in the Standard solution (µg/mL)
CU== concentration of Tranylcypromine Sulfate in the Sample solution (µg/mL)
F== response factor relative to tranylcypromine sulfate
Calculate the percentage of tranylcypromine related compound B in the portion of sample taken:
Result = (rU/rS) × (CS/CU) × (Mr1/Mr2) × 100
rU== peak response at 249 nm of tranylcypromine related compound B from the Sample solution
rS== peak response at 249 nm of tranylcypromine related compound B from the Standard solution
CS== concentration of USP Tranylcypromine Related Compound B RS in the Standard solution (µg/mL)
CU== concentration of Tranylcypromine Sulfate in the Sample solution (µg/mL)
Mr1== molecular weight of 3-phenylallylamine free base, 133.19
Mr2== molecular weight of 3-phenylallylamine hydrochloride (USP Tranylcypromine Related Compound B RS), 169.66
Acceptance criteria
Individual impurities:  See Impurity Table 1. [Note—Tranylcypromine related compound B is determined at 249 nm. All other specified and unspecified impurities are determined at 220 nm. ]
Total impurities:  NMT 1.0% for sum of tranylcypromine related compound A, tranylcypromine related compound B, cis-hydrazide, trans-hydrazide, and any unspecified impurity.
Impurity Table 1
Name Relative
Retention
Time
Relative
Response
Factor
Acceptance
Criteria,
NMT (%)
Tranylcypromine related compound Aa 0.82 0.74 0.50
Tranylcypromine sulfate 1.0 1.0
Tranylcypromine related compound Bb 1.2 0.50
cis-Hydrazidec 1.4 0.86 0.50
trans-Hydrazided 2.5 1.1 0.50
Any unspecified impurity 1.0 0.10
a  (±)-cis-2-Phenylcyclopropanamine (cis-Cypromine).
b  3-Phenylallylamine (Cinnamylamine), monitored at 249 nm.
c  (±)-cis-2-Phenylcyclopropanecarbohydrazide.
d  (±)-trans-2-Phenylcyclopropanecarbohydrazide.
SPECIFIC TESTS
•   Loss on Drying 731: Dry a sample in vacuum at 60 for 2 h: it loses NMT 0.5% of its weight.
ADDITIONAL REQUIREMENTS
•  Packaging and Storage: Preserve in well-closed containers.
•  USP Reference Standards 11
USP Tranylcypromine Sulfate RS Click to View Structure
USP Tranylcypromine Related Compound A RS
(±)-cis-2-Phenylcyclopropanamine hydrochloride; cis-tranylcypromine hydrochloride.
    C9H11N·HCl        169.65
USP Tranylcypromine Related Compound B RS
3-Phenylallylamine hydrochloride; cinnamylamine hydrochloride.
    C9H11N·HCl        169.65
