Octinoxate
(ok'' tin ox' ate).
+'&img=../../images/v35300/cas-5466-77-3.gif&casNumber=5466-77-3&usp=35&nf=30&chemicalStructureImage=true&ID='+parent.myID,600,500);)

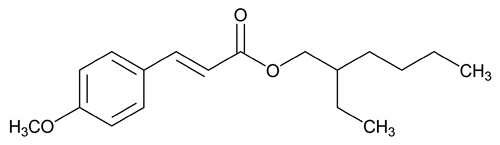

290.402-Ethylhexyl 3-(4-methoxyphenyl)-2-propenoate.
2-Propenoic acid, 3-(4-methoxyphenyl)-, 2-ethylhexyl ester.
[5466-77-3].» Octinoxate contains not less than 95.0 percent and not more than 105.0 percent of C18H26O3, calculated on the as-is basis.
Packaging and storage—
Preserve in tight containers, in a cool place.
USP Reference standards
11
—
11—
USP Octinoxate RS
Octyl methoxycinnamate.
') + '&img=../../images/v35300/cas-5466-77-3.gif',600,500);)
Octyl methoxycinnamate.
Identification—
Specific gravity 841:
between 1.005 and 1.013.
841:
between 1.005 and 1.013.
Refractive index 831:
between 1.542 and 1.548 at 20
.
831:
between 1.542 and 1.548 at 20.
Acidity—
Transfer 5 mL of Octinoxate to a suitable container, add 50 mL of alcohol, and mix. Add 4 drops of phenolphthalein TS, and titrate with 0.1 N sodium hydroxide: not more than 0.8 mL is consumed.
Chromatographic purity—
Test solution—
Transfer about 5 mL of Octinoxate to a 100-mL volumetric flask, dilute with acetone to volume, and mix.
Chromatographic system (see Chromatography 621)—
Proceed as directed in the Assay.
621)—
Proceed as directed in the Assay.
Procedure—
Inject a volume (about 1 µL) of the Test solution into the chromatograph, record the chromatogram, and measure the areas for all the peaks. Calculate the percentage of each impurity in the portion of Octinoxate taken by the formula:
100(ri / rs)
in which ri is the peak area for each impurity; and rs is the sum of the areas for all the peaks: not more than 0.5% of any individual impurity is found; and not more than 2.0% of total impurities is found.
Assay—
Internal standard solution—
Transfer about 25 mL of benzyl benzoate to a 500-mL volumetric flask, dilute with acetone to volume, and mix.
Standard preparation—
Dilute an accurately measured quantity of USP Octinoxate RS quantitatively, and stepwise if necessary, with Internal standard solution to obtain a solution having a known concentration of about 50 mg per mL.
Assay preparation—
Transfer about 5 mL of Octinoxate, accurately measured, to a 100-mL volumetric flask, dilute with Internal standard solution to volume, and mix.
Chromatographic system (see Chromatography 621)—
The gas chromatograph is equipped with a flame-ionization detector, a 0.32-mm × 25-m column that contains coating G1, and a split injection system with a split ratio of about 85:1. The carrier gas is helium, flowing at a rate of about 2 mL per minute. The chromatograph is programmed as follows. Initially the temperature of the column is equilibrated at 80, then the temperature is increased to 300 over a period of 10 minutes, and maintained at 300 for 10 minutes. The injection port temperature is maintained at 250, and the detector temperature is maintained at 300. Chromatograph the Standard preparation, and record the peak areas as directed for Procedure: the relative retention times are about 0.68 for benzyl benzoate and 1.0 for octinoxate; the resolution, R, between benzyl benzoate and octinoxate is not less than 20; and the relative standard deviation for replicate injections is not more than 2.0%.
621)—
The gas chromatograph is equipped with a flame-ionization detector, a 0.32-mm × 25-m column that contains coating G1, and a split injection system with a split ratio of about 85:1. The carrier gas is helium, flowing at a rate of about 2 mL per minute. The chromatograph is programmed as follows. Initially the temperature of the column is equilibrated at 80, then the temperature is increased to 300 over a period of 10 minutes, and maintained at 300 for 10 minutes. The injection port temperature is maintained at 250, and the detector temperature is maintained at 300. Chromatograph the Standard preparation, and record the peak areas as directed for Procedure: the relative retention times are about 0.68 for benzyl benzoate and 1.0 for octinoxate; the resolution, R, between benzyl benzoate and octinoxate is not less than 20; and the relative standard deviation for replicate injections is not more than 2.0%.
Procedure—
Separately inject equal volumes (about 1 µL) of the Standard preparation and the Assay preparation into the chromatograph, record the chromatograms, and measure the areas for the major peaks. Calculate the quantity, in mg, of C18H26O3 in the portion of Octinoxate taken by the formula:
100C(RU / RS)
in which C is the concentration, in mg per mL, of USP Octinoxate RS in the Standard preparation; and RU and RS are the peak area ratios of octinoxate to benzyl benzoate obtained from the Assay preparation and the Standard preparation, respectively.
Auxiliary Information—
Please check for your question in the FAQs before contacting USP.
| Topic/Question | Contact | Expert Committee |
|---|---|---|
| Monograph | Feiwen Mao, M.S.
Senior Scientific Liaison 1-301-816-8320 |
(SM32010) Monographs - Small Molecules 3 |
| Reference Standards | RS Technical Services 1-301-816-8129 rstech@usp.org |
USP35–NF30 Page 4097
Pharmacopeial Forum: Volume No. 33(2) Page 246
