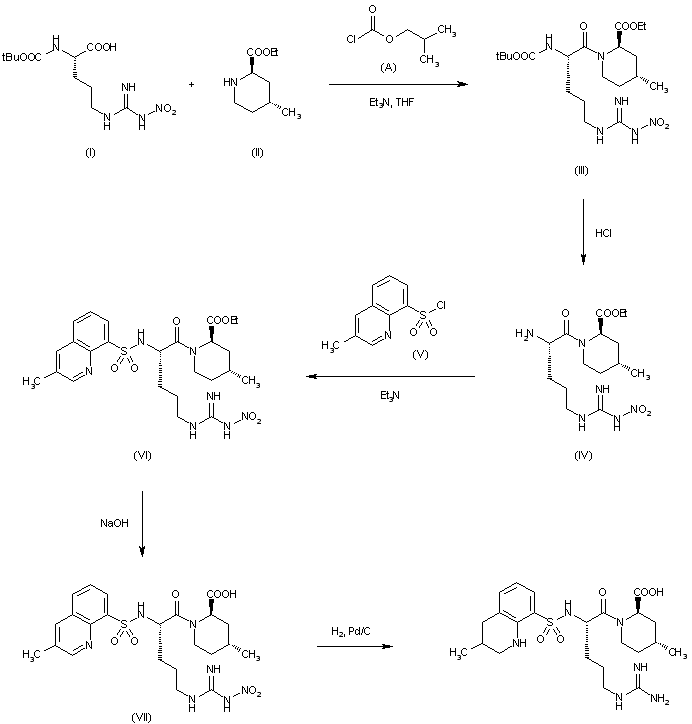

The condensation of N(G)-nitro-N2-(tert-butoxy-carbonyl)-L-arginine (I) with ethyl 4-methylpiperidine-2-carboxylate (II) by means of isobutyl chloroformate (A) and triethylamine in THF gives ethyl 1-[N(G)-nitro-N2-(tert-butoxycarbonyl)-L-arginyl]-4-methylpiperidine-2-carboxylate (III), which is protected with HCl in ethyl acetate yielding ethyl 1-(N(G)-nitro-L-arginyl)-4-methylpiperidine-2-carboxylate (IV). The condensation of (IV) with 3-methylquinoline-8-sulfonyl chloride (V) by means of triethylamine in chloroform affords ethyl 1-(N(G)-nitro-N2-(3-methyl-8-quinolinylsulfonyl)-L-arginyl]-4-methyl-2-piperidinecarboxylate (VI), which is hydrolyzed with NaOH in ethanol-water giving 1-[N(G)-nitro-N2-(3-methyl-8-quinolinylsulfonyl)-L-arginyl]-4-methyl-2-piperidinecarboxylic acid (VII). Finally, this compound is deprotected and reduced by hydrogenation with H2 over Pd/C in ethanol.

The condensation of N(G)-nitro-N2-(tert-butoxy-carbonyl)-L-arginine (I) with ethyl 4-methylpiperidine-2-carboxylate (II) by means of isobutyl chloroformate (A) and triethylamine in THF gives ethyl 1-[N(G)-nitro-N2-(tert-butoxycarbonyl)-L-arginyl]-4-methylpiperidine-2-carboxylate (III), which is protected with HCl in ethyl acetate yielding ethyl 1-(N(G)-nitro-L-arginyl)-4-methylpiperidine-2-carboxylate (IV). The condensation of (IV) with 3-methylquinoline-8-sulfonyl chloride (V) by means of triethylamine in chloroform affords ethyl 1-(N(G)-nitro-N2-(3-methyl-8-quinolinylsulfonyl)-L-arginyl]-4-methyl-2-piperidinecarboxylate (VI), which is hydrolyzed with NaOH in ethanol-water giving 1-[N(G)-nitro-N2-(3-methyl-8-quinolinylsulfonyl)-L-arginyl]-4-methyl-2-piperidinecarboxylic acid (VII). Finally, this compound is deprotected and reduced by hydrogenation with H2 over Pd/C in ethanol.

The condensation of N(G)-nitro-N2-(tert-butoxy-carbonyl)-L-arginine (I) with ethyl 4-methylpiperidine-2-carboxylate (II) by means of isobutyl chloroformate (A) and triethylamine in THF gives ethyl 1-[N(G)-nitro-N2-(tert-butoxycarbonyl)-L-arginyl]-4-methylpiperidine-2-carboxylate (III), which is protected with HCl in ethyl acetate yielding ethyl 1-(N(G)-nitro-L-arginyl)-4-methylpiperidine-2-carboxylate (IV). The condensation of (IV) with 3-methylquinoline-8-sulfonyl chloride (V) by means of triethylamine in chloroform affords ethyl 1-(N(G)-nitro-N2-(3-methyl-8-quinolinylsulfonyl)-L-arginyl]-4-methyl-2-piperidinecarboxylate (VI), which is hydrolyzed with NaOH in ethanol-water giving 1-[N(G)-nitro-N2-(3-methyl-8-quinolinylsulfonyl)-L-arginyl]-4-methyl-2-piperidinecarboxylic acid (VII). Finally, this compound is deprotected and reduced by hydrogenation with H2 over Pd/C in ethanol.

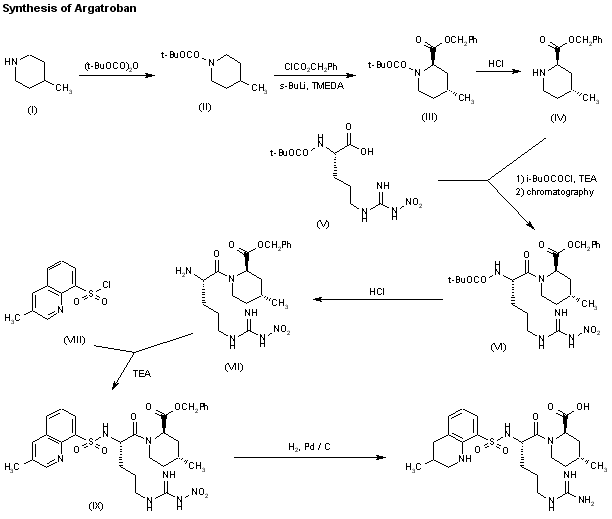

A new short synthesis of argatroban has been reported: The protection of 4-methylpiperidine (I) with (Boc)2O gives the carbamate (II), which is condensed with benzyl chloroformate by means of sec-butyl lithium and TMEDA in ethyl ether to yield (?-trans-1-(tert-butoxycarbonyl)-4-methylpiperidine-2-carboxylic acid benzyl ester (III). Deprotection of the NH group of (III) with HCl in ethyl acetate affords (?-trans-4-methylpiperidine-2-carboxylic acid benzyl ester (IV), which is condensed with the protected arginine derivative (V) by means of isobutyl chloroformate and TEA to provide the corresponding amide as a diastereomeric mixture. Resolution of this mixture by flash chromatography furnishes the desired diastereomer (VI), which is treated with HCl in ethyl acetate in order to remove the Boc-protecting group to yield compound (VII). Condensation of compound (VII) with 3-methylquinoline-8-sulfonyl chloride (VIII) by means of TEA in dichloromethane affords the expected sulfonamide (IX). Finally, this compound is submitted to hydrogenation with H2 over Pd/C in AcOH/ethanol in order to produce debenzylation, cleavage of the NO2 group and hydrogenation of the pyridine ring to yield argatroban.
