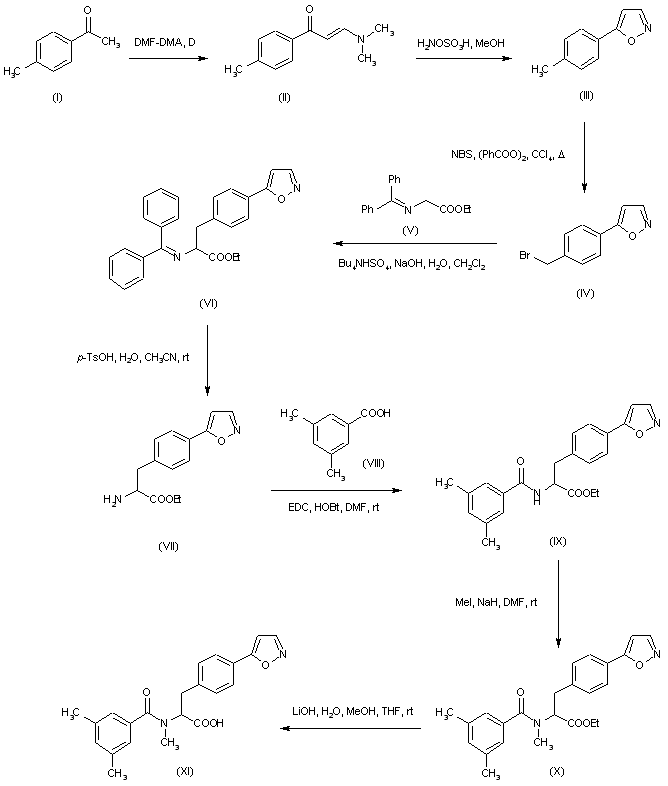

4'-Methylacetophenone (I) was condensed with boiling dimethylformamide dimethylacetal, and the resulting enaminoketone (II) was cyclized to the isoxazole (III) with hydroxylamine O-sulfonic acid in MeOH. Benzylic bromination of (III) with N-bromosuccinimide in the presence of benzoyl peroxide gave bromomethyl compound (IV). Subsequent alkylation of diphenylmethylene glycine ethyl ester (V) with (IV) under phase-transfer conditions, followed by acid deprotection furnished isoxazolylphenylalanine ethyl ester (VII). This compound was condensed with 3,5-dimethyl benzoic acid (VIII) using EDC and HOBt to give amide (IX). Further N-methylation of (IX) with MeI and NaH yielded (X), which was hydrolyzed with LiOH to the carboxylic acid (XI).

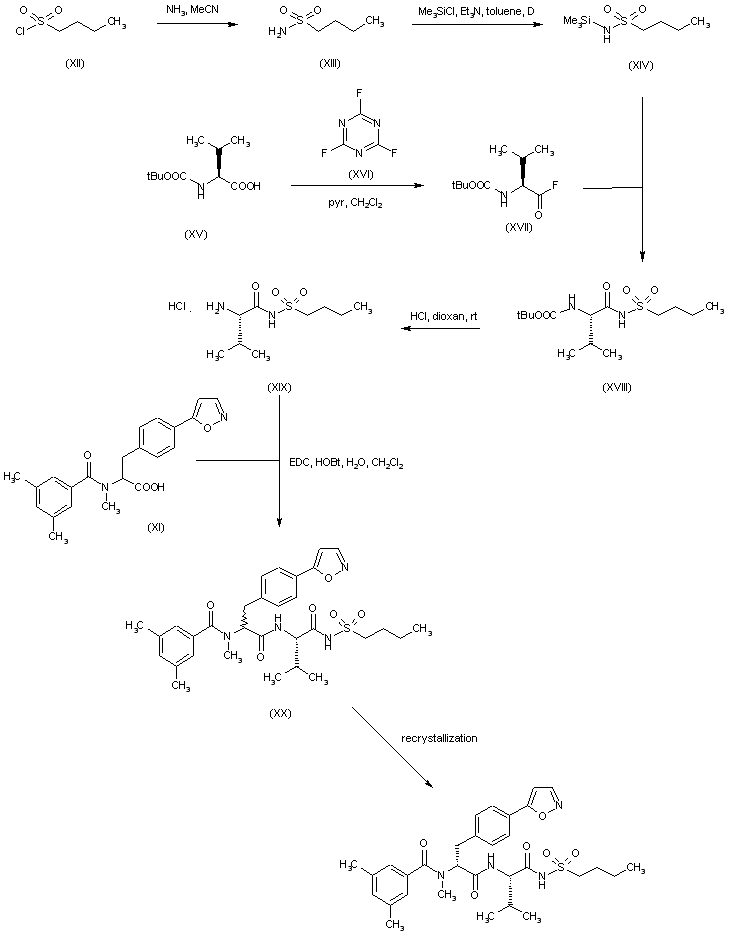

1-Butanesulfonyl chloride (XII) was reacted with ammonia in acetonitrile, and the resulting sulfonamide (XIII) was then converted to the N-trimethylsilyl derivative (XIV). This compound was coupled with acid fluoride (XVII), (obtained from Boc-valine (XV) and cyanuric fluoride (XVI)), to provide Boc-valinesulfonamide (XVIII). The Boc group of (XVIII) was then removed by acid treatment to give (XIX). Coupling of this chiral intermediate (XIX) with racemic acid (XI) in a biphasic solvent system, with partial isomerization of acid (XI), furnished the amide (XX) as a 12:1 diastereomeric mixture. The major D,L diastereoisomer was then isolated either by preparative HPLC or by recrystallization from isopropanol.
