【药物名称】Rupatadine fumarate, UR-12592 fumarate, Alergoliber, Rupafin
化学结构式(Chemical Structure):
参考文献No.378250
标题:Rupatadine Fumarate
作者:Garc韆-Rafanell, J.
来源:Drugs Fut 1996,21(10),1032
合成路线图解说明:

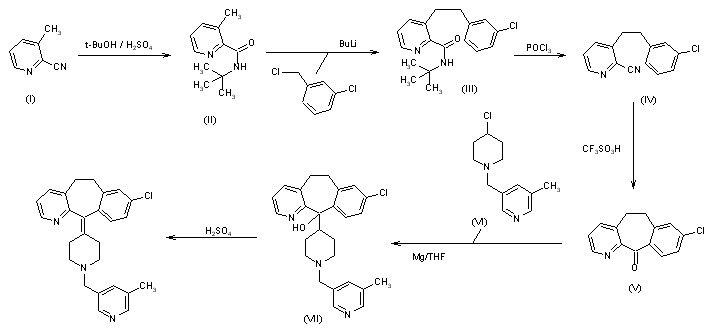

The reaction of 2-cyano-3-methylpyridine (I) with H2SO4 in t-BuOH gives the N-tert-butylamide (II), which is treated with two equivalents of BuLi and the corresponding dianion alkylated with 3-chlorobenzyl chloride to afford amide (III). The treatment of (III) with POCl3 gives nitrile (IV), which is cyclized to ketone (V) by subsequent treatment with CF3SO3H and aqueous HCl. Reaction of ketone (V) with the Grignard derivative prepared from chloride (VI) affords alcohol (VII), which is finally dehydrated by H2SO4 to give UR-12592, as shown in Scheme 20491401a.

合成路线图解说明:

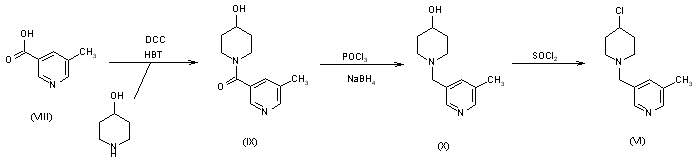

The key intermediate (VI) is synthesized through the condensation of 5-methylnicotinic acid (VIII) with 4-hydroxypiperidine by means of DCC in DMF to give amide (IX), followed by reduction with POCl3 and NaBH4 to give the amino alcohol (X), which is treated with SOCl2.

参考文献No.900014
标题:Process for the preparation of 8-chloro-6,11-dihydro-11-[1-[(5-methyl-3-pyridinyl)methyl]-4-piperidinylidene]-5H-benzo[5,6]cyclohepta[1,2-b]pyridine
作者:Carceller, E.; Jim閚ez, P.J.; Salas, J. (J. Uriach & C韆., SA)
来源:ES 9602107
合成路线图解说明:

The reaction of 2-cyano-3-methylpyridine (I) with H2SO4 in t-BuOH gives the N-tert-butylamide (II), which is treated with two equivalents of BuLi and the corresponding dianion alkylated with 3-chlorobenzyl chloride to afford amide (III). The treatment of (III) with POCl3 gives nitrile (IV), which is cyclized to ketone (V) by subsequent treatment with CF3SO3H and aqueous HCl. Reaction of ketone (V) with the Grignard derivative prepared from chloride (VI) affords alcohol (VII), which is finally dehydrated by H2SO4 to give UR-12592, as shown in Scheme 20491401a.

合成路线图解说明:

The key intermediate (VI) is synthesized through the condensation of 5-methylnicotinic acid (VIII) with 4-hydroxypiperidine by means of DCC in DMF to give amide (IX), followed by reduction with POCl3 and NaBH4 to give the amino alcohol (X), which is treated with SOCl2.
