【药物名称】Lafutidine, FRG-8813, Stogar, Protecadin
化学结构式(Chemical Structure):
参考文献No.8972
标题:Pyridyloxy derivs
作者:Hirakawa, N.; Kashiwaba, N.; Matsumoto, H.; Hosoda, A.; Sekine, Y.; Isowa, Y.; Yamaura, T.; Sekine, A.; Nishikawa, M. (UCB Japan)
来源:EP 0282077; JP 1988225371; JP 1989230556; JP 1989230576; US 4912101
合成路线图解说明:

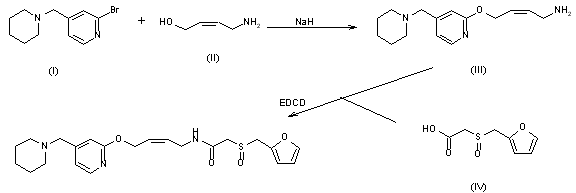

1) The reaction of 2-bromo-4-(piperidin-1-ylmethyl)pyridine (I) with 4-amino-2(Z)-buten-1-ol (II) by means of NaH in THF gives 4-[4-(piperidin-1-ylmethyl)pyridin-2-yloxy]-2(Z)-buten-1-amine (III), which is then condensed with 2-(2-furylmethylsulfinyl)acetic acid (IV) by means of 1-ethyl-3-[3-(dimethylamino)propyl]carbodiimide (EDCD) in dichloromethane.

参考文献No.24222
标题:Methods of producing amino butene derivs
作者:Iwata, H.; Matsumoto, H.; Matsumoto, M.; Sekine, Y.; Nishimura, M.; Hosoda, A. (UCB Japan)
来源:EP 0582304; JP 1994192195
合成路线图解说明:

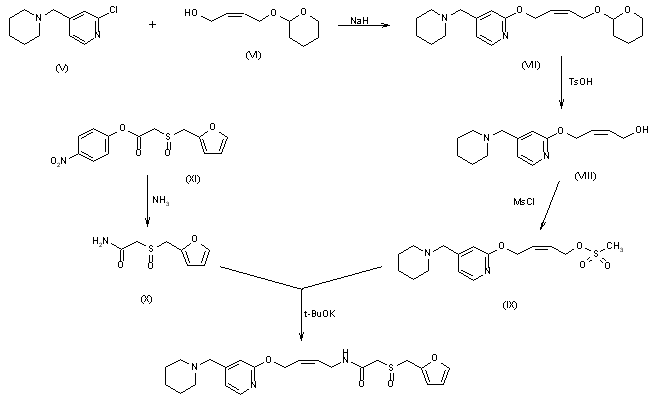

The condensation of 2-chloro-4-(piperidin-1-ylmethyl)pyridine (V) with 4-(tetrahydropyranyloxy)-2(Z)-buten-1-ol (VI) by means of NaH in THF gives 4-(piperidin-1-ylmethyl)-2-[4-(tetrahydropyranyloxy)-2(Z)-butenyloxy)pyridine (VII), which is deprotected with 4-methylbenzenesulfonic acid in methanol, yielding the free butenol (VIII). The acylation of (VIII) with methanesulfonyl chloride in toluene affords the corresponding mesylate (IX), which is finally condensed with 2-(2-furylmethylsulfonyl)acetamide (X) (obtained from the corresponding 4-nitrophenyl ester (XI) with ammonia) by means of potassium tert-butoxide in toluene.

参考文献No.263047
标题:Lafutidine
作者:Graul, A.; Prous, J.; Casta馿r, J.
来源:Drugs Fut 1994,19(9),835
合成路线图解说明:

1) The reaction of 2-bromo-4-(piperidin-1-ylmethyl)pyridine (I) with 4-amino-2(Z)-buten-1-ol (II) by means of NaH in THF gives 4-[4-(piperidin-1-ylmethyl)pyridin-2-yloxy]-2(Z)-buten-1-amine (III), which is then condensed with 2-(2-furylmethylsulfinyl)acetic acid (IV) by means of 1-ethyl-3-[3-(dimethylamino)propyl]carbodiimide (EDCD) in dichloromethane.

合成路线图解说明:

The condensation of 2-chloro-4-(piperidin-1-ylmethyl)pyridine (V) with 4-(tetrahydropyranyloxy)-2(Z)-buten-1-ol (VI) by means of NaH in THF gives 4-(piperidin-1-ylmethyl)-2-[4-(tetrahydropyranyloxy)-2(Z)-butenyloxy)pyridine (VII), which is deprotected with 4-methylbenzenesulfonic acid in methanol, yielding the free butenol (VIII). The acylation of (VIII) with methanesulfonyl chloride in toluene affords the corresponding mesylate (IX), which is finally condensed with 2-(2-furylmethylsulfonyl)acetamide (X) (obtained from the corresponding 4-nitrophenyl ester (XI) with ammonia) by means of potassium tert-butoxide in toluene.

参考文献No.472999
标题:A novel histamine 2(H2) receptor antagonist with gastroprotective activity. II. Synthesis and pharmacological evaluation of 2-furfuryl-thio and 2-furfurylsulfinyl acetamide derivatives with heteroaromatic rings
作者:Hirakawa, N.; Matsumoto, H.; Hosoda, A.; Sekine, A.; Yamaura, T.; Sekine, Y.
来源:Chem Pharm Bull 1998,46(4),616
合成路线图解说明:

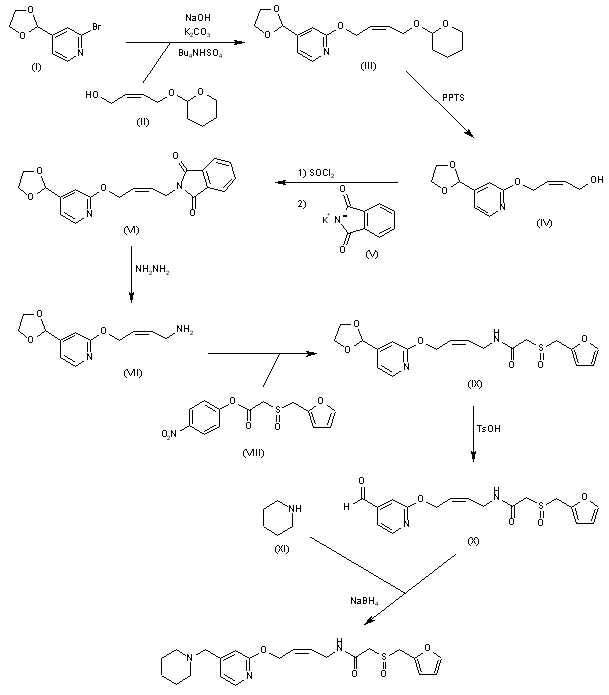

A new synthesis of lafutidine has been described: The condensation of 2-bromopyridine-4-carbaldehyde ethylene ketal (I) with 4-(tetrahydropyranyloxy)-2(Z)-buten-1-ol (II) by means of NaOH, K2CO3 and tetrabutylammonium bisulfate in refluxing toluene gives the corresponding substitution product (III), which by treatment with pyridinium p-toluenesulfonate (PPTS) in hot ethanol yields the 2(Z)-butenol (IV). The reaction of (IV) with SOCl2 and then with potassium phthalimide (V) affords the substituted phthalimide (VI), which by treatment with hydrazine hydrate in refluxing methanol gives the 2(Z)-butenamine (VII). The condensation of (VII) with 2-(2-furylmethylsulfinyl)acetic acid 4-nitrophenyl ester (VIII) in THF yields the expected amide (IX), which is treated with p-toluenesulfonic acid in refluxing acetone/water to eliminate the ethylene ketal protecting group yilding the aldehyde (X). Finally, this compound is reductocondensed with piperidine (XI) by means of NaBH4 in ethanol.
