Human Insulin

(Ph. Eur. monograph 0838)

C₂₅₇H₃₈₃N₆₅O₇₇S₆    5808    11061-68-0

Hormone; treatment of diabetes mellitus.

Insulin Preparations

Ph Eur

Human insulin is a 2-chain peptide having the structure of the antidiabetic hormone produced by the human pancreas.

95.0 per cent to 105.0 per cent of human insulin C₂₅₇H₃₈₃N₆₅O₇₇S₆ plus A21 desamido human insulin (dried substance).

By convention, for the purpose of labelling insulin preparations, 0.0347 mg of human insulin is equivalent to 1 IU of insulin.

Human insulin is produced either by enzymatic modification and suitable purification of insulin obtained from the pancreas of the pig or by a method based on recombinant DNA (rDNA) technology.

Where applicable, the animals from which human insulin is derived must fulfil the requirements for the health of animals suitable for human consumption.

Human insulin is produced under conditions designed to minimise the degree of microbial contamination.

For human insulin produced by enzymatic modification of insulin obtained from the pancreas of the pig, the manufacturing process is validated to demonstrate removal of any residual proteolytic activity. The competent authority may require additional tests.

For human insulin produced by a method based on rDNA technology, prior to release the following tests are carried out on each batch of the final bulk product, unless exemption has been granted by the competent authority.

The limit is approved by the competent authority.

The limit is approved by the competent authority. Use a suitably sensitive method.

White or almost white powder.

Practically insoluble in water and in ethanol (96 per cent). It dissolves in dilute mineral acids and with decomposition in dilute solutions of alkali hydroxides.

A. Examine the chromatograms obtained in the assay.

Results  The principal peak in the chromatogram obtained with the test solution is similar in retention time to the principal peak in the chromatogram obtained with reference solution (a).

B. Peptide mapping (2.2.55).

SELECTIVE CLEAVAGE OF THE PEPTIDE BONDS

Test solution  Prepare a 2.0 mg/mL solution of the substance to be examined in 0.01 M hydrochloric acid and transfer 500 µL of this solution to a clean tube. Add 2.0 mL of HEPES buffer solution pH 7.5 R and 400 µL of a 1 mg/mL solution of Staphylococcus aureus strain V8 protease, type XVII-B R. Cap the tube and incubate at 25 °C for 6 h. Stop the reaction by adding 2.9 mL of sulfate buffer solution pH 2.0 R.

Reference solution  Prepare at the same time and in the same manner as for the test solution but using human insulin CRS instead of the substance to be examined.

CHROMATOGRAPHIC SEPARATION

Liquid chromatography (2.2.29).

• — size: l = 0.10 m, Ø = 4.6 mm,

• — stationary phase: octadecylsilyl silica gel for chromatography R (3 µm) with a pore size of 8 nm,

• — temperature: 40 °C.

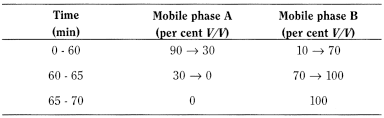

• — mobile phase A: mix 100 mL of acetonitrile for chromatography R, 200 mL of sulfate buffer solution pH 2.0 R and 700 mL of water R; filter and degas;

• — mobile phase B: mix 200 mL of sulfate buffer solution pH 2.0 R, 400 mL of acetonitrile for chromatography R and 400 mL of water R; filter and degas;

Flow rate  1 mL/min.

Detection  Spectrophotometer at 214 nm.

Equilibration  At initial conditions for at least 15 min. Carry out a blank run using the above-mentioned gradient.

Injection  50 µL.

• — the chromatograms obtained with the test solution and the reference solution are qualitatively similar to the chromatogram of human insulin digest supplied with human insulin CRS,

• — in the chromatogram obtained with the reference solution, identify the peaks due to digest fragments I, II and III:

Symmetry factor  Maximum 1.5 for the peaks due to fragments II and III,

Resolution  Minimum 3.4 between the peaks due to fragments II and III.

Results  The profile of the chromatogram obtained with the test solution corresponds to that of the chromatogram obtained with the reference solution.

NOTE: the retention time of fragment I is the same for porcine insulin and for human insulin. The retention times of fragments II and IV are the same for all insulins. The retention time of fragment III is the same for bovine insulin and for porcine insulin.

Size-exclusion chromatography (2.2.30): use the normalisation procedure.

Test solution  Prepare a solution containing 4 mg/mL of the substance to be examined in 0.01 M hydrochloric acid.

Resolution solution  Use a solution of insulin (about 4 mg/mL), containing more than 0.4 per cent of high molecular mass proteins. An injectable insulin preparation, whether a solution or a suspension, that has been clarified with a sufficient amount of 6 M hydrochloric acid R, containing the indicated percentage of high molecular mass proteins, or a solution prepared from insulin, dissolved in 0.01 M hydrochloric acid, may be used. Insulin containing the indicated percentage of high molecular mass proteins may be prepared by allowing insulin powder to stand at room temperature for about 10 days.

Maintain the solutions at 2-8 °C and use within 7 days. If an automatic injector is used, maintain the temperature at 2-8 °C.

• — size: l = 0.3 m, Ø = minimum 7.5 mm,

• — stationary phase: hydrophilic silica gel for chromatography R (5-10 µm) with a pore size of 12-12.5 nm, of a grade suitable for the separation of insulin monomer from dimer and polymers.

Mobile phase  Mix 15 volumes of glacial acetic acid R, 20 volumes of acetonitrile R and 65 volumes of a 1.0 g/L solution of arginine R; filter and degas.

Flow rate  0.5 mL/min.

Detection  Spectrophotometer at 276 nm.

Equilibration  Before using a new column for chromatographic analysis, equilibrate by repeated injections of an insulin solution containing high molecular mass proteins. This can be done by at least 3 injections of the resolution solution. The column is equilibrated when repeatable results are obtained from 2 subsequent injections.

Injection  100 µL.

Run time  About 35 min.

Retention time  Polymeric insulin complexes = 13-17 min; covalent insulin dimer = about 17.5 min; insulin monomer = about 20 min; salts = about 22 min.

System suitability  Resolution solution:

• — peak-to-valley ratio: minimum 2.0, where H_p = height above the baseline of the peak due to the dimer and H_v = height above the baseline of the lowest point of the curve separating this peak from the peak due to the monomer.

Limits  The sum of the areas of any peaks with a retention time less than that of the principal peak is not greater than 1.0 per cent of the total area of the peaks. Disregard any peak with a retention time greater than that of the peak due to insulin.

Liquid chromatography (2.2.29) as described under Assay, following the elution conditions as described below:

Maintain the solutions at 2-8 °C and use within 24 h. Perform a system suitability test (resolution, linearity) as described in the assay. If necessary, the relative proportions of the mobile phases may be adjusted to ensure complete elution of A21 desamido porcine insulin before commencement of the gradient. The profile of the gradient may also be adjusted to ensure complete elution of all insulin related impurities.

Inject 20 µL of reference solution (a), 20 µL of reference solution (b), 20 µL of reference solution (c) and 20 µL of the test solution. If necessary, adjust the injection volume to a volume between 10 µL and 20 µL in accordance with the results obtained in the test for linearity as described in the assay. Record the chromatograms for approximately 50 min. In the chromatogram obtained with reference solution (a), A21 desamido human insulin appears as a small peak after the principal peak and has a retention time of about 1.3 relative to the principal peak. In the chromatogram obtained with the test solution, the area of the peak due to A21 desamido human insulin is not greater than 2.0 per cent of the total area of the peaks; the sum of the areas of all peaks, apart from those due to human insulin and that due to A21 desamido human insulin, is not greater than 2.0 per cent of the total area of the peaks. For semisynthetic human insulin only: in the chromatogram obtained with the test solution, the area of any peak corresponding to the principal peak in the chromatogram obtained with reference solution (b) is not greater than the area of the corresponding peak in the chromatogram obtained with reference solution (c) (1.0 per cent of porcine insulin in human insulin).

The following test applies only to human insulin produced by enzymatic modification of porcine insulin.

Maximum 10 ppm, calculated with reference to the dried substance and determined by a suitably sensitive immunochemical method (2.7.1) such as radio-immunoassay. Use the International Reference Reagent for porcine proinsulin to calibrate the method.

Maximum 1.0 per cent (dried substance).

Atomic absorption spectrometry (2.2.23, Method I).

Test solution  Dissolve 50.0 mg of the substance to be examined in 0.01 M hydrochloric acid and dilute to 25.0 mL with the same acid. Dilute if necessary to a suitable concentration (for example, 0.4-1.6 µg of Zn per millilitre) with 0.01 M hydrochloric acid.

Reference solutions  Use solutions containing 0.40 µg, 0.80 µg, 1.00 µg, 1.20 µg and 1.60 µg of Zn per millilitre, freshly prepared by diluting zinc standard solution (5 mg/mL Zn) R with 0.01 M hydrochloric acid.

Source  Zinc hollow-cathode lamp.

Wavelength  213.9 nm.

Atomisation device  Air-acetylene flame of suitable composition (for example, 11 L of air and 2 L of acetylene per minute).

Maximum 10.0 per cent, determined on 0.200 g by drying in an oven at 105 °C for 24 h.

Maximum 2.5 per cent, determined on 0.200 g (dried substance).

Less than 10 IU/mg, if intended for use in the manufacture of parenteral preparations without a further appropriate procedure for removal of bacterial endotoxins.

Liquid chromatography (2.2.29).

Test solution  Dissolve 40.0 mg of the substance to be examined in 0.01 M hydrochloric acid and dilute to 10.0 mL with the same solvent.

Reference solution (a)  Dissolve the contents of a vial of human insulin CRS in 0.01 M hydrochloric acid to obtain a concentration of 4.0 mg/mL.

Reference solution (b)  Dissolve the contents of a vial of porcine insulin CRS in 0.01 M hydrochloric acid to obtain a concentration of 4.0 mg/mL.

Reference solution (c)  Dilute 1.0 mL of reference solution (b) to 50.0 mL with 0.01 M hydrochloric acid. To 1.0 mL of this solution add 1.0 mL of reference solution (a).

Reference solution (d)  Dilute 1.0 mL of reference solution (a) to 10.0 mL with 0.01 M hydrochloric acid.

Resolution solution  Mix 1.0 mL of reference solution (a) and 1.0 mL of reference solution (b).

Maintain the solutions at 2-8 °C and use within 48 h. If an automatic injector is used, maintain at 2-8 °C.

• — size: l = 0.25, Ø = 4.6 mm,

• — stationary phase: octadecylsilyl silica gel for chromatography R (5 µm),

• — temperature: 40 °C.

Mobile phase  Mix 42 volumes of mobile phase A and 58 volumes of mobile phase B, adjusting the composition of the mixture if necessary.

Prepare and maintain the following solutions at a temperature of at least 20 °C:

• — mobile phase A: dissolve 28.4 g of anhydrous sodium sulfate R in water R and dilute to 1000 mL with the same solvent; add 2.7 mL of phosphoric acid R; adjust to pH 2.3, if necessary, with ethanolamine R; filter and degas;

• — mobile phase B: mix 550 mL of mobile phase A with 450 mL of acetonitrile R. Warm the solution to a temperature of at least 20 °C in order to avoid precipitation (mixing of mobile phase A with acetonitrile is endothermic); filter and degas.

Flow rate  1 mL/min.

Detection  Spectrophotometer at 214 nm.

• — resolution: inject 20 µL of the resolution solution and 20 µL of reference solution (b). Record the chromatogram of the resolution solution until the peak corresponding to the principal peak in the chromatogram obtained with reference solution (b) is clearly visible. In the chromatogram obtained with the resolution solution, identify the peaks due to porcine insulin and human insulin. The test is not valid unless the resolution between the peaks due to human insulin and porcine insulin is at least 1.2. If necessary, adjust the concentration of acetonitrile in the mobile phase until this resolution is achieved.

• — linearity: inject 20 µL each of reference solutions (a) and (d). The test is not valid unless the area of the principal peak in the chromatogram obtained with reference solution (a) is 10 ± 0.5 times the area of the principal peak in the chromatogram obtained with reference solution (d). If this test fails, adjust the injection volume to between 10 µL and 20 µL, in order that the responses are within the linearity range of the detector.

Injection  20 µL of the test solution and reference solution (a).

Calculate the content of human insulin C₂₅₇H₃₈₃N₆₅O₇₇S₆ plus A21 desamido human insulin using the areas of the corresponding peaks in the chromatograms obtained with the test solution and reference solution (a) and the declared content of human insulin plus A21 desamido human insulin in human insulin CRS.

In an airtight container, protected from light, at - 18 °C or below, until released by the manufacturer. When thawed, insulin is stored at 5 ± 3 °C and used for manufacturing preparations within a short period of time. To avoid absorption of humidity from the air during weighing, the insulin must be at room temperature.

The label states whether the substance is produced by enzymatic modification of porcine insulin or by rDNA technology.

Ph Eur
